Machine Learning Workflow Orchestration

Flyte & StreamFlow

Bernd Doser

HITS

October 2024

Agenda

  • Introduction to Workflow Orchestration
  • Solutions for Workflow Orchestration
    • StreamFlow
    • Flyte
  • Infrastructure for Machine Learning Workflows
    • HPC vs AI/ML
    • File vs Object Storage

Motivated by SPACE CoE

Goal: Astrophysical simulations for exascale computing
Challenge: Analyze large-size simulation data (~ Petabytes)
Solution: Efficient ML-based workflows using dimensionality reduction

Input

Simulation Data (~ Petabytes)

Time snapshots storing particle positions, velocities, and other properties, e.g. from OpenGADGET (IllustrisTNG)

Workflow

Output

Spherinator & HiPSter

space.h-its.org

Why Workflow Orchestration?

  • Reproducibility: Ensure your experiments are reproducible by tracking the code, data, model, and environment.
  • Resource management: Manage resources efficiently by running tasks in parallel and optimizing resource usage.
  • Scalability: Scale your workflows to handle large amount of data and complex pipelines.
  • Monitoring: Track the progress of workflows and monitor their performance and results.
  • Collaboration: Enable collaboration between team members by sharing code, data, and results.

Requirements on Workflow Orchestration

  • Define execution requirements (e.g. GPUs, CPUs, memory)
  • Control runtime environment with containers
  • Orchestration features
    • Parallelization: Run independent tasks automatically in parallel
    • Caching: Avoid recomputing successful tasks
    • Nesting: Reuse workflows as tasks
    • Looping: Repeat tasks based on conditions
    • Scattering: Distribute data to multiple tasks
    • Conditionals: Branching based on conditions

Machine Learning Workflow Example

Options to Generate a Workflow

StreamFlow

StreamFlow

  • StreamFlow is a general framework for workflow orchestration
  • Relies on the Common Workflow Language (CWL)
    and connects the CWL with a deployment model
  • Workflows can be deployed to different environments:
    • Containers / Singularity
    • Slurm
    • Kubernetes

Note

BioExcel Building Blocks is a great example using CWL for biomolecular simulation.

Common Workflow Language (CWL)

workflow.cwl
class: Workflow

inputs:
  epochs: int
  train_dataset: Directory
  eval_dataset: Directory
  train_script: File
  eval_script: File

outputs:
  model:
    type: File
    outputSource: train/model
  accuracy:
    type: string
    outputSource: eval/accuracy

steps:
  train:
    run: train.cwl
    in:
      train_script:train_script
      epochs:epochs
      dataset:train_dataset
    out:
      - model
      - loss
  evaluate:
    run: eval.cwl
    in:
      eval_script:eval_script
      dataset:eval_dataset
      model:train/model
    out:
      - accuracy
  • Declare the workflow in a YAML file
    • inputs
    • outputs
    • steps
  • Inputs and outputs are passed between steps and must be compatible
  • Workflows can be shared and reused

Common Workflow Language (CWL)

workflow.cwl
class: Workflow

inputs:
  epochs: int
  train_dataset: Directory
  eval_dataset: Directory
  train_script: File
  eval_script: File

outputs:
  model:
    type: File
    outputSource: train/model
  accuracy:
    type: string
    outputSource: eval/accuracy

steps:
  train:
    run: train.cwl
    in:
      train_script:train_script
      epochs:epochs
      dataset:train_dataset
    out:
      - model
      - loss
  evaluate:
    run: eval.cwl
    in:
      eval_script:eval_script
      dataset:eval_dataset
      model:train/model
    out:
      - accuracy

train.cwl
class: CommandLineTool

baseCommand: [python]

inputs:
  train_script:
    type: File
    inputBinding:
      position: 1
  dataset:
    type: Directory
    inputBinding:
      position: 2
      prefix: --dataset
  epochs:
    type: int
    inputBinding:
      position: 2
      prefix: --epochs

outputs:
  model:
    type: File
    outputBinding:
      glob: state_dict_model.pt
  loss:
    type: string
    outputBinding:
      glob:

Visualizing CWL Graphs

CWL Implementations in Production

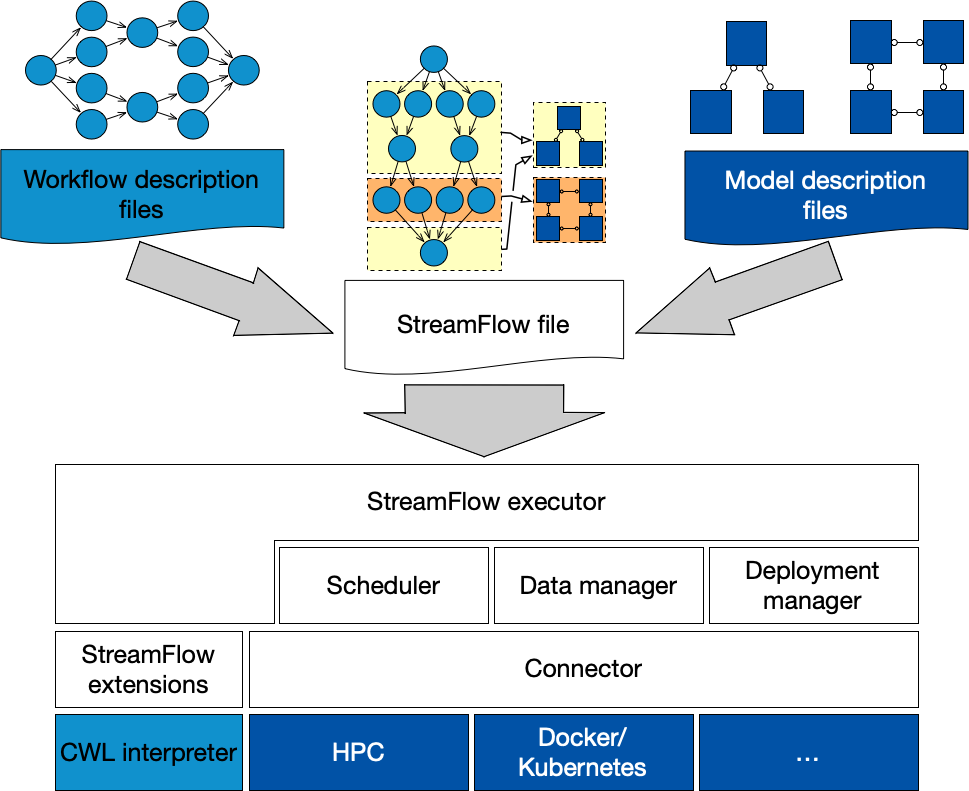

StreamFlow Architecture

StreamFlow Deployment

streamflow_container.yaml
workflows:
  workflow1:
    type: cwl
    config:
      file: cwl/workflow.cwl
      settings: cwl/settings.yml
    bindings:
      - step: /
        target:
          deployment: python3.12

deployments:
  python3.12:
    type: docker
    config:
      image: python:3.12

streamflow_slurm.yaml
workflows:
  # same as left

deployments:
  ssh-cascade:
    type: ssh
    config:
      nodes:
       - cascade-login.h-its.org
  slurm:
    type: slurm
    config:
      maxConcurrentJobs: 10
      services:
        cascade:
          partition: cascade.p
          nodes: 1
          mem: 1gb
    wraps: ssh-cascade

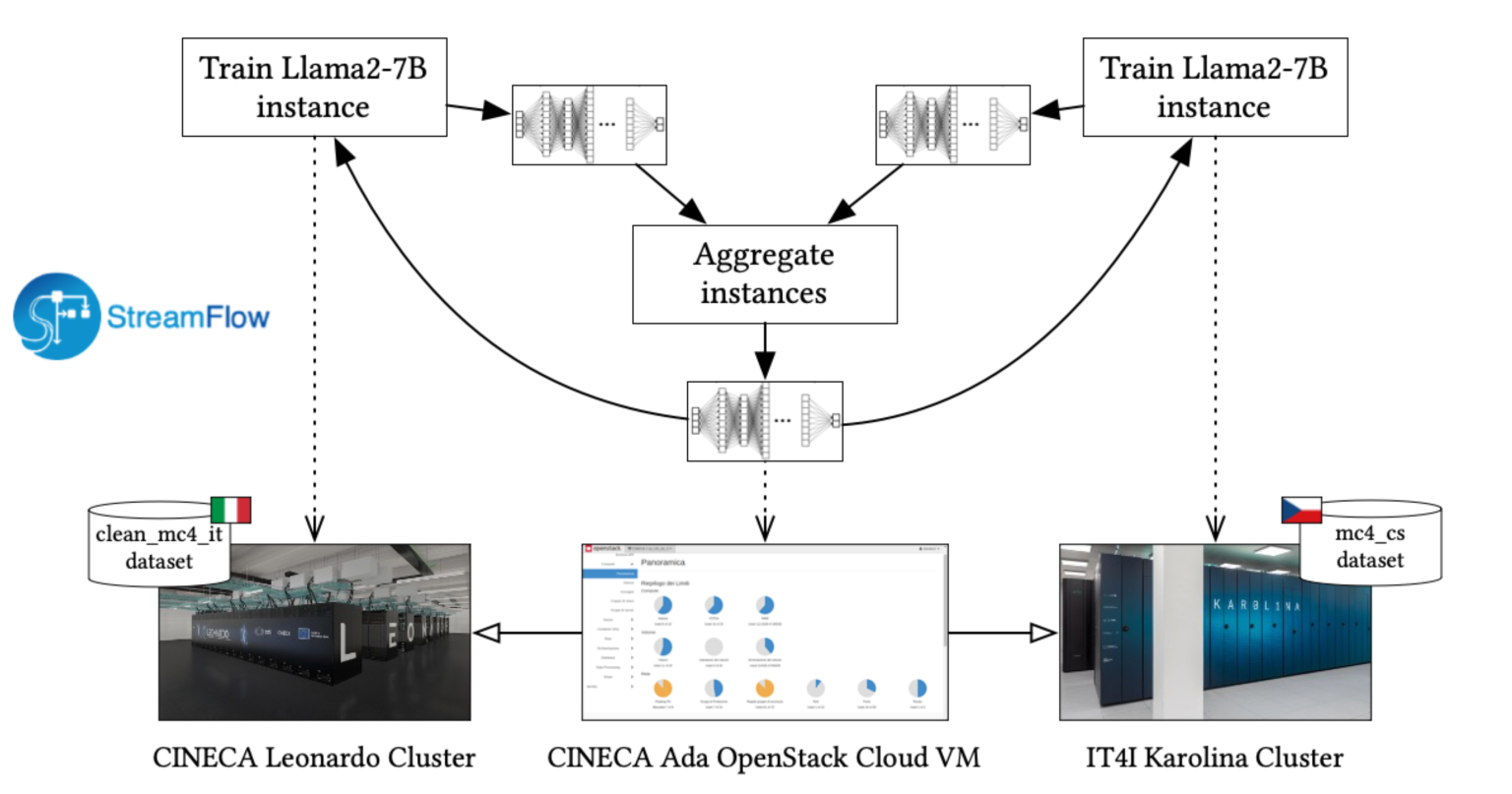

StreamFlow: Federated Learning

StreamFlow Demo

Flyte

Flyte

  • Flyte is a highly scalable cloud-native workflow orchestration platform on top of containers and kubernetes
  • Member of the Linux Foundation AI & Data
  • Strongly typed interfaces make it robust
  • Supports a wide range of programming languages
  • Data visualization and monitoring tools (FlyteDeck)
  • Large community and active development

Flyte Test Setup

Thanks to Martin Wendt (ITS) for providing a comprehensive testing setup including Kubernetes (k3s), Flyte, and MinIO.

Flyte Command-line Interface

  • Start a demo cluster on your local machine
flytectl start demo
  • Create a new project
flytectl create project --name seminar --id seminar --description "seminar showcases"
  • Manage workflows, tasks, and executions

Flyte Concepts

  • Project: A collection of workflows, tasks, and executions
  • Domain: Deployment level (development, staging, and production)
  • Workflow: A collection (directed acyclic graph) of tasks
  • Task: Fully independent unit of work
  • Execution: A run of a task or workflow
  • Launch Plan: A scheduled execution of a workflow

Flyte Tasks

  • Tasks are strongly typed (see Flyte Type Mapping)
  • Tasks are regular Python function decorated with @task
  • Tasks are designed to be idempotent (multiple executions don’t change the result).
from typing import List
from flytekit import task

@task
def mean(values: List[float]) -> float:
    return sum(values) / len(values)

Flyte Workflows

Workflows are used to structure the task execution graph

@task
def generate_processed_corpus() -> List[List[str]]:

@task
def train_word2vec_model(training_data: List[List[str]], hyperparams: Word2VecModelHyperparams) -> model_file:

@task
def train_lda_model(corpus: List[List[str]], hyperparams: LDAModelHyperparams) -> Dict[int, List[str]]:

@task
def word_similarities(model_ser: FlyteFile[MODELSER_NLP], word: str) -> Dict[str, float]:

@task
def word_movers_distance(model_ser: FlyteFile[MODELSER_NLP]) -> float:

@workflow
def nlp_workflow(target_word: str = "computer") -> [Dict[str, float], float, Dict[int, List[str]]]:
    corpus = generate_processed_corpus()
    model_wv = train_word2vec_model(training_data=corpus, hyperparams=Word2VecModelHyperparams())
    lda_topics = train_lda_model(corpus=corpus, hyperparams=LDAModelHyperparams())
    similar_words = word_similarities(model_ser=model_wv.model, word=target_word)
    distance = word_movers_distance(model_ser=model_wv.model)
    return similar_words, distance, lda_topics

Containerized Tasks

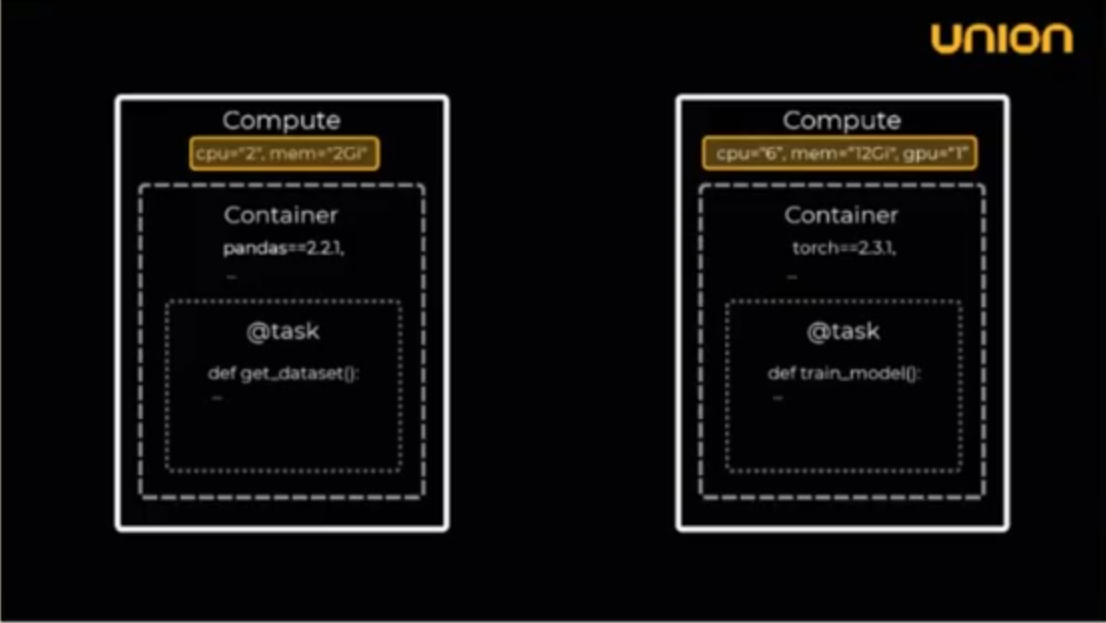

A Flyte task operates within its own container and runs on a Kubernetes pod

Container Image Specifications

  • Customize the container image without a Dockerfile
  • Container image is build at registration and pushed to a container registry
custom_image = ImageSpec(
    packages=["torch", "torchvision", "lightning"],
    apt_packages=["curl", "wget"],
    cuda="12.6",
    python_version="3.12",
    registry="registry.h-its.org/doserbd/flyte",
)

FlyteConsole (WebUI)

  • Launch and relaunch tasks and workflows
  • View versioned tasks and workflows
  • Inspect executions through inputs, outputs, logs, and graphs
  • Clone and recover executions

Flyte Demo

Summary I

StreamFlow

Pros

  • Common workflow language (CWL)
  • Supports deployment on Slurm and Kubernetes
  • No special infrastructure setup needed

Cons

  • Input and output bindings are redundant and error-prone
  • Monitoring and visualization tools are outdated and not user-friendly

Flyte

Pros

  • General-purpose workflow orchestrator leveraging Kubernetes
  • Robust task interconnections with static typing
  • Data pipeline driven by object storage
  • Advanced monitoring and visualization features

Cons

  • Requires migration of compute nodes from Slurm to Kubernetes

Infrastructure for Machine Learning Workflows

The background image was generated with FLUX on fal.ai
using the prompt ‘Visualize two worlds showing the difference between HPC and AI infrastructure’

HPC vs AI/ML Infrastructure

HPC workload

  • Simulations, modeling, and data analysis

  • Large clusters of CPUs and high-speed interconnects

  • Parallel computing (MPI)

  • Scheduling with Slurm

  • Bare-metal compilation

  • Distributed file storage

AI/ML workload

  • Training and inference of models

  • Data-intensive tasks

  • Numerous Matrix operations requires accelerators (GPU, TPU, ..)

  • Cloud-native deployment

  • Kubernetes and containers

  • Object storage

Hardware and software requirements differ significantly based on the nature of their workloads and infrastructure.

Storage Types

File Storage

  • Hierarchical structure in files and directories
  • Net-File-System (NFS)

~ 1-4 GB/s (READ)

Block Storage

  • Data is divided in uniformly sized blocks
  • Local SSD / NVMe (limited capacity)
  • Can be distributed in storage-area network (SAN), but expensive

~ 5-10 GB/s (READ)

Object Storage

  • Unstructured data (eg, images, videos, logs)

  • RESTful API (cloud-native)

  • S3 (AWS), MinIO

  • Objects can’t be modified

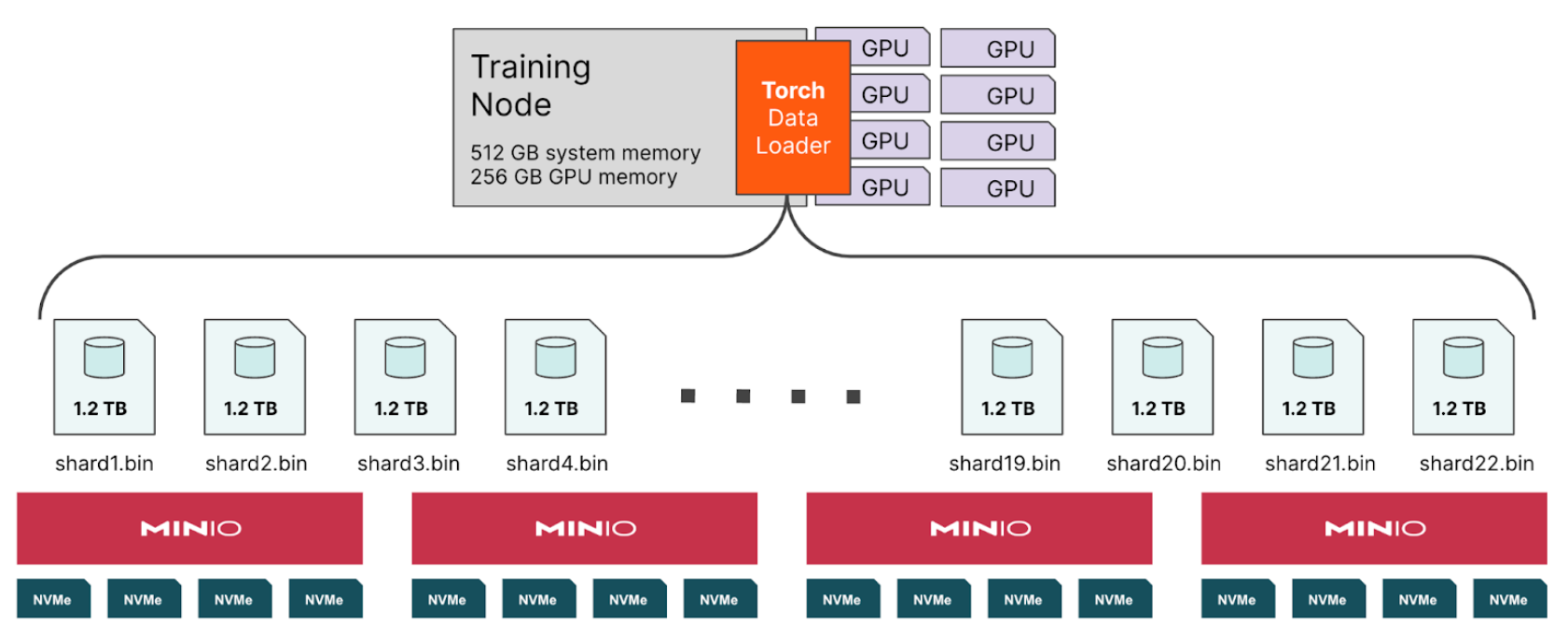

  • ~ 50 GB/s (GET, MinIO benchmark, 8 storage nodes)

  • Can be scaled up to TB/s

MinIO Object Storage

  • MinIO is a high-performance, open source object storage system
  • The API is compatible Amazon S3 cloud storage service

Summary II

  • HPC and AI/ML workflows have different requirements to the infrastructure
  • Object Storage is a scalable storage solution for unstructured data and provide fast access to large files
  • MinIO is an open-source object storage solution that can be deployed on-premises

Questions?

ML Workflow Orchestration (Bernd Doser, HITS)
